Components

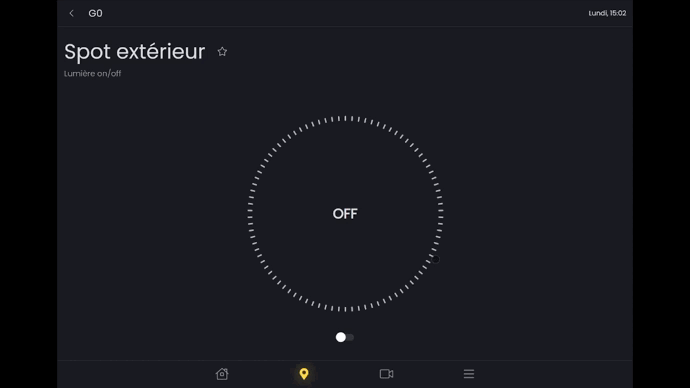

Single light
A Single Light can be switched on or off.

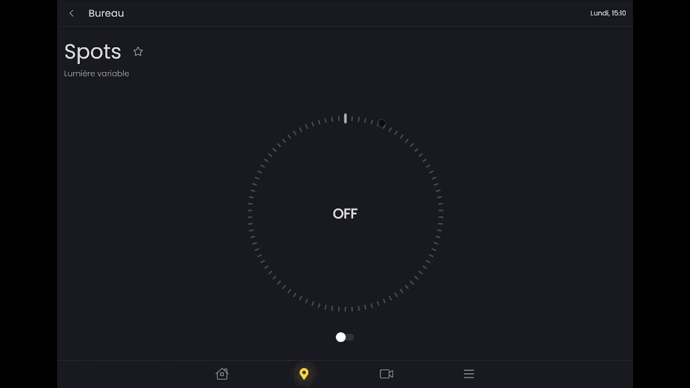

Dimmable light
A Dimmable light can be varied in intensity and, like a simple light, it can be switched on or off.

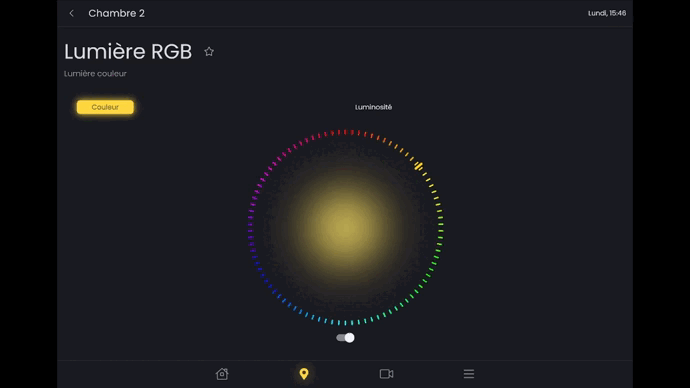

RGB light
An RGB light allows you to vary the colour as well as the brightness and on/off status.
To control this light, 2 tabs are used. The first is used to select the desired colour using the wheel. The second tab lets you choose the intensity.
RGB and white light
As well as an RGB light, the RGBW light can be used to activate the lamp's white light.
To activate or deactivate the white light mode, simply click on the round button in the centre of the colour wheel.
.gif?inst-v=76e07e40-af85-4d08-822b-4d0736e92124)

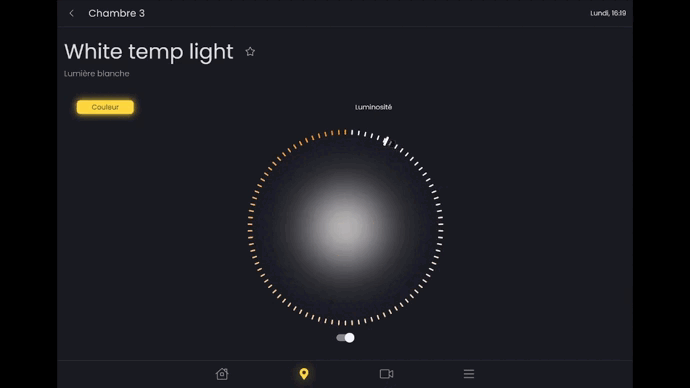

Light with white temperature
As well as being variable (variable intensity), this light can be used to control the temperature of the white.

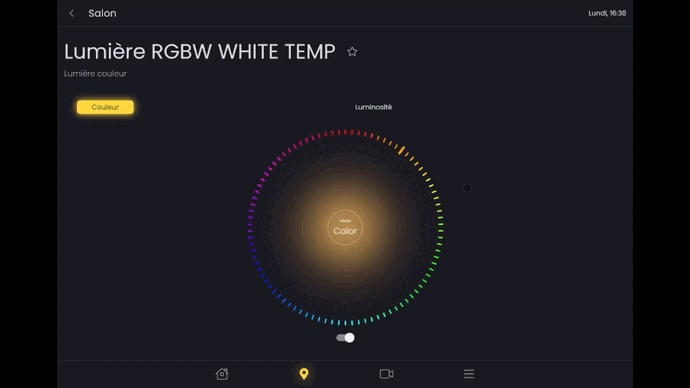

RGB light with white temperature
This light has all the functions (on/off, variable intensity, colour, white heat)

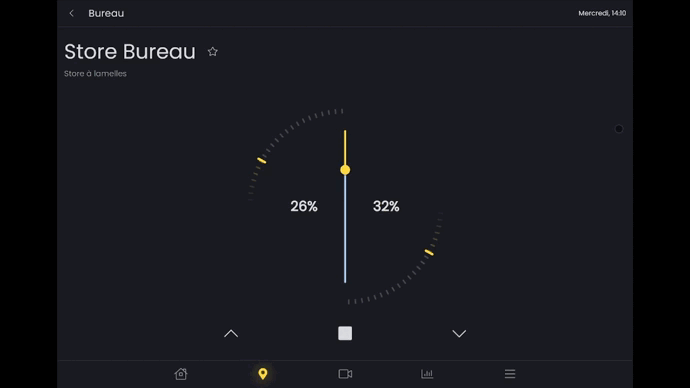

Venetian blind
A Venetian blind with adjustable slats can be controlled according to two parameters: the position (height) and the orientation of the slat.
The chevrons at the bottom of the screen can be used to raise and lower the blind in the same way as a physical button.
In addition to the circular slider, you can vary the inclination of the slats by pressing and holding the chevron-shaped buttons.
The square button can be used to stop the blind going up or down.

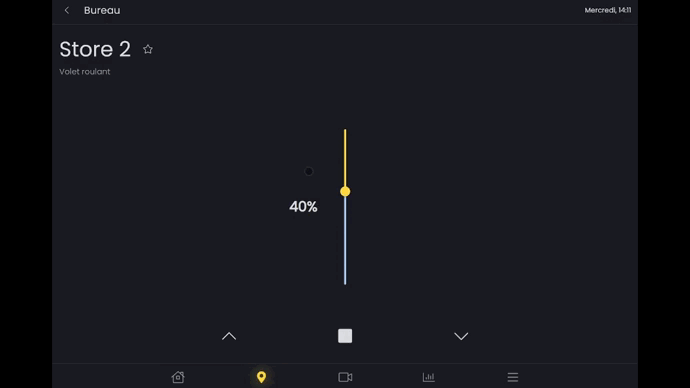

Rolling shutter
A Rolling Shutter (RS) can be controlled according to its position (height) using the slider.
The chevrons at the bottom of the screen can be used to raise and lower the blind in the same way as a physical button.
If you press and hold the chevron-shaped buttons, you can vary its position.
The square allows you to stop the blind going up or down.

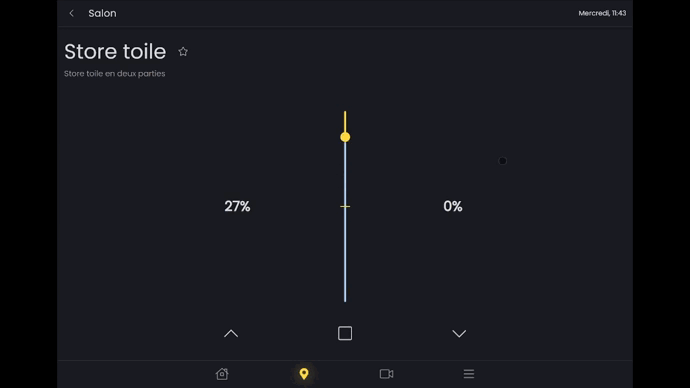

Two-piece fabric awning
The Two-piece fabric awning can be adjusted using a single slider. The "horizontal" part of the awning is represented by the first percentage and the first part of the slider. The vertical part of the awning is represented by the second part of the slider and the second percentage.
To open the vertical part, you must first open the previous part completely. (On this type of awning, to guarantee strength and stability, the vertical part must be opened when the horizontal part is fully open).

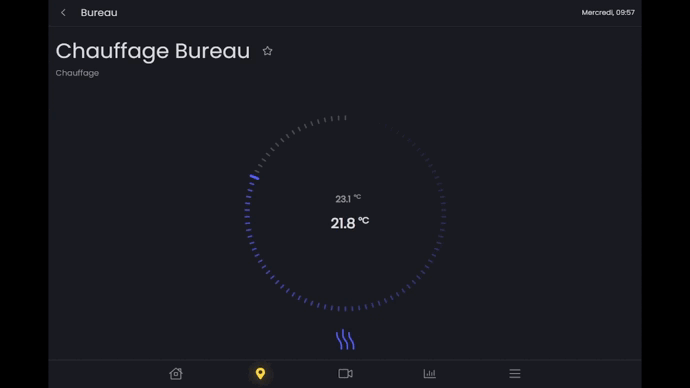

Heating
The heating component is used to set the desired temperature for the zone.
The lower temperature (lighter and larger) shows the temperature desired by the cursor. The top temperature shows the room's current temperature.
The cursor remains blue as long as the selected temperature is below the current temperature. If the desired temperature is higher than the current temperature, it will turn red.
At the very bottom, the heating icon turns red when it is heating up or blue if it is not.

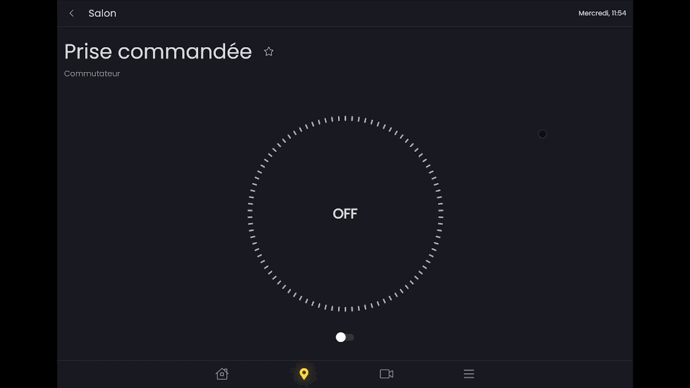

Switches
Switches can be controlled sockets, for example. They can be activated and deactivated by the switch.

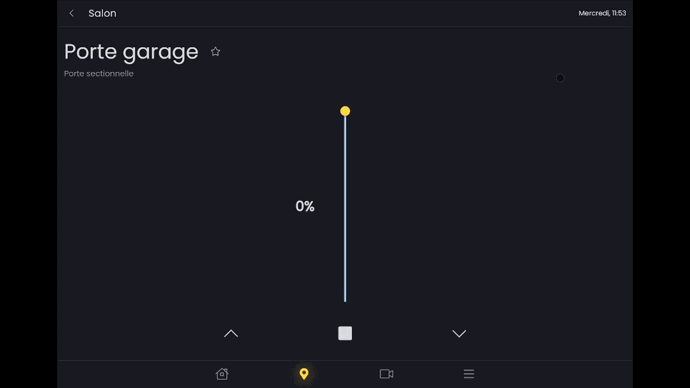

Sectional door
A garage door can be opened or closed using a slider or the chevrons and stop button.

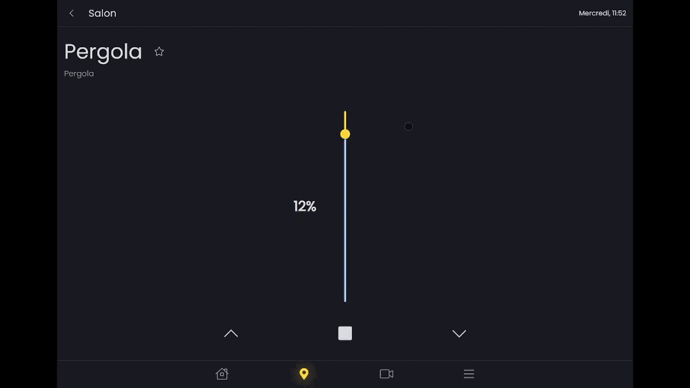

Pergola
The slats of the Pergola can be simply adjusted using a slider (0% open to 90° and 100% closed).
